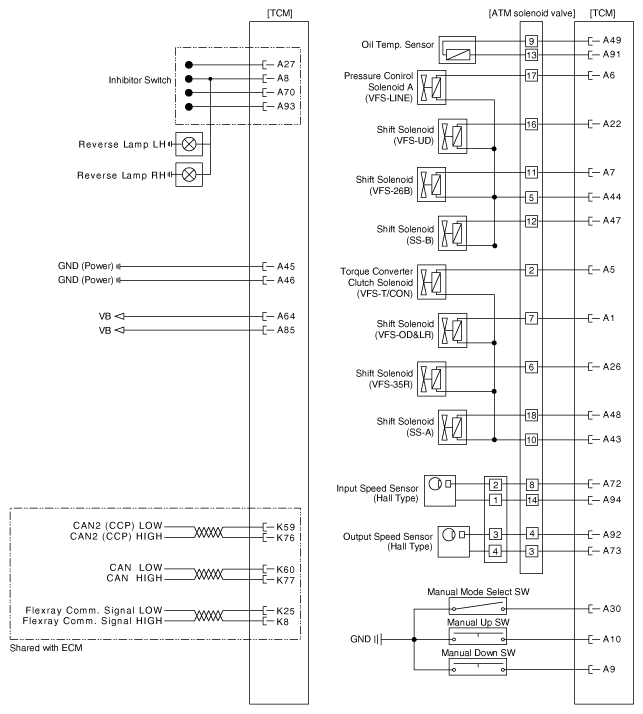

Home › Kia › 2017 › Soul + › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L › Transaxle Control Module (TCM) › Schematic Diagrams › Circuit Diagram
