Body Control Module (BCM)
›
Schematic Diagrams
Schematic Diagrams
Circuit Diagram

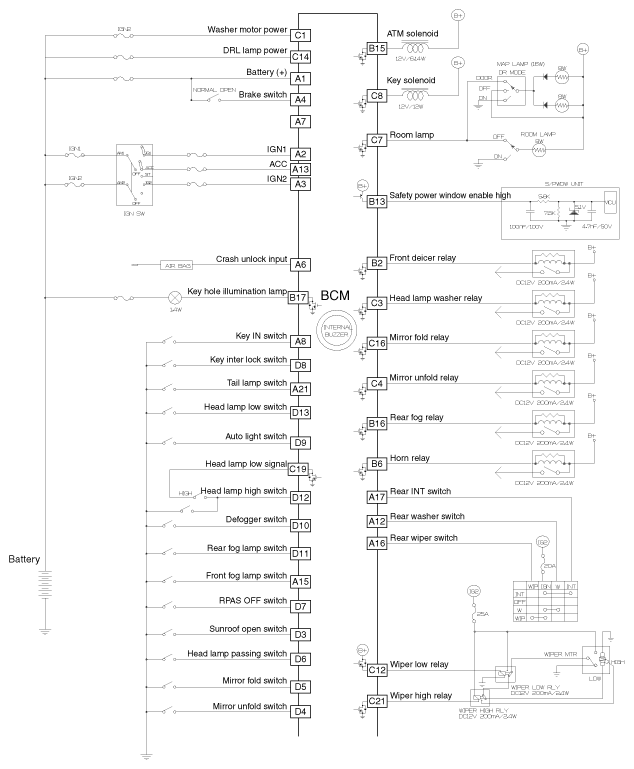

Fig 1: BCM Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

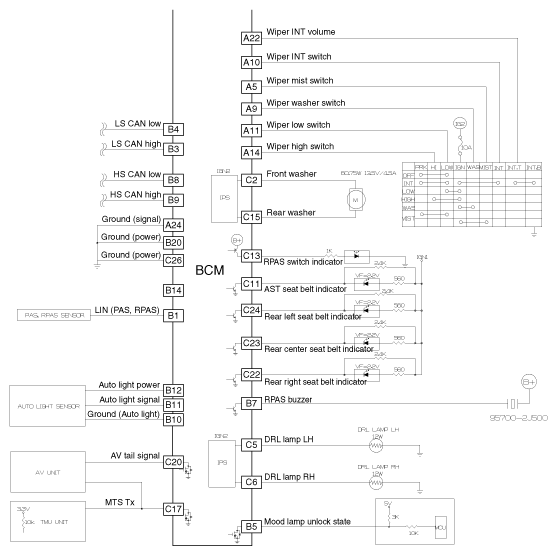

Fig 2: BCM Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
