Smart Cruise Control System
›
Smart Cruise Control Switch
›
Schematic Diagrams
›

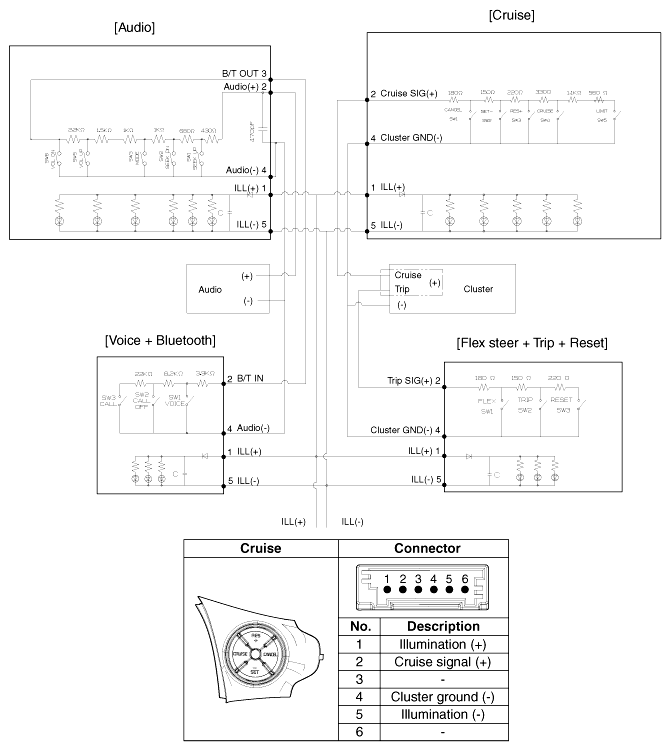

Circuit Diagram
Circuit Diagram
Fig 1: Smart Cruise Control Switch Connector End View And Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
