System Block Diagram
System Block Diagram

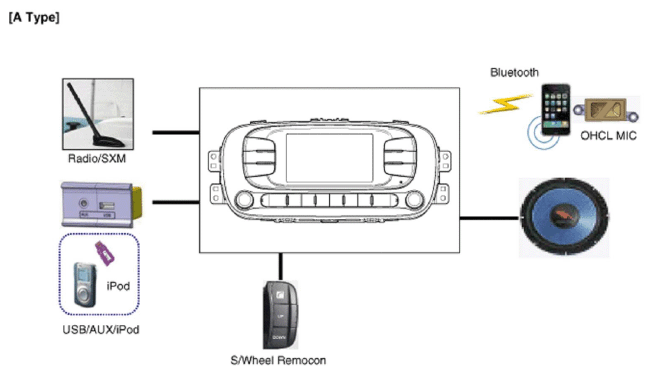

Fig 1: Audio Head Unit System Block Diagram (A Type)
Courtesy of KIA MOTORS AMERICA, INC.

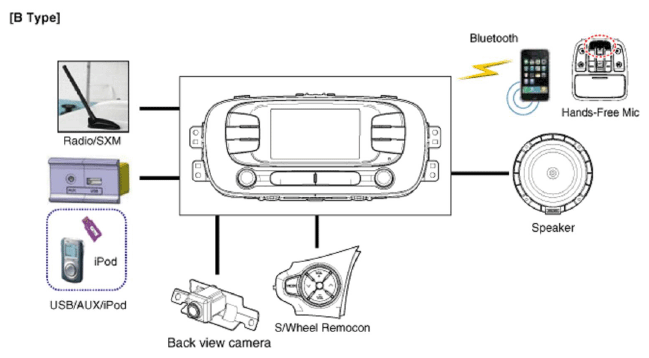

Fig 2: Audio Head Unit System Block Diagram (B Type)
Courtesy of KIA MOTORS AMERICA, INC.

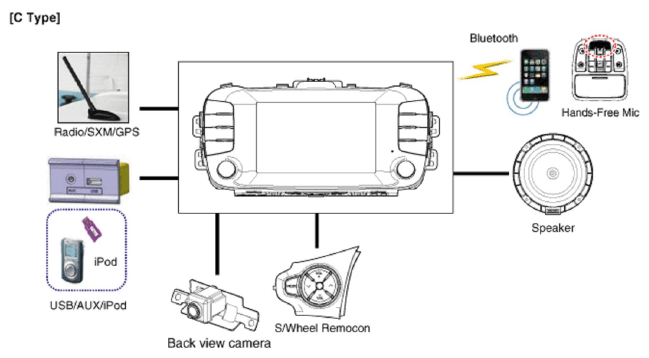

Fig 3: Audio Head Unit System Block Diagram (C Type)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
