Lighting System
›
Components And Components Location
›
Component Location
Component Location

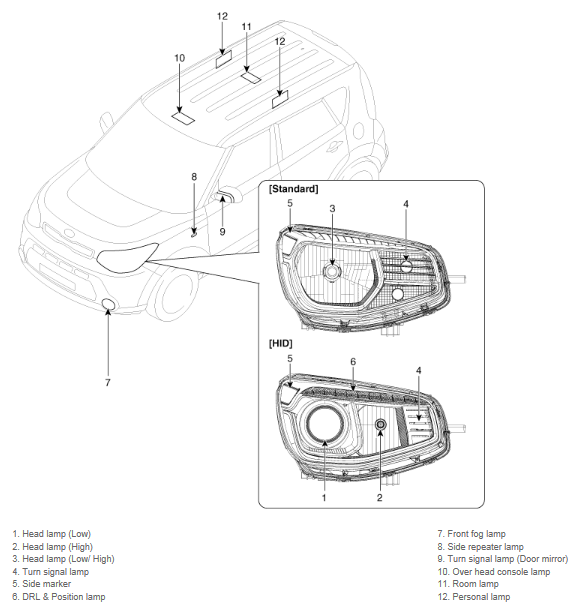

Fig 1: Lighting System Components Location (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

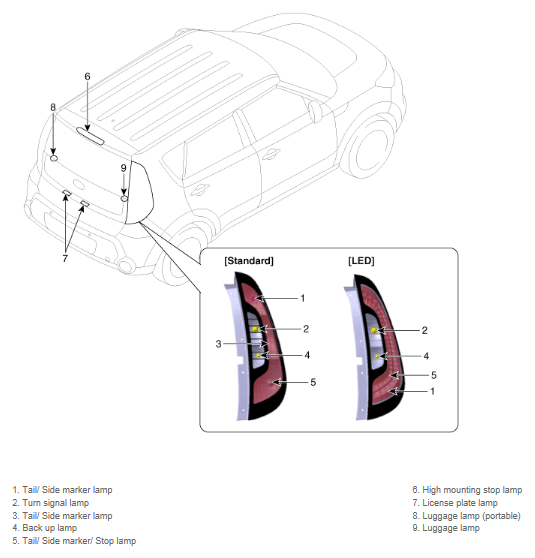

Fig 2: Lighting System Components Location (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
