Repair Procedures: Replacement

Information

• When removing and installing the tail gate, an assistant is necessary.

1. Remove the tail gate trim.

   (Refer to Tail Gate - "TAIL GATE TRIM ")

2. Disconnect the washer nozzle hose (A).
   Fig 1: Disconnecting Washer Nozzle Hose

   Courtesy of KIA MOTORS AMERICA, INC.

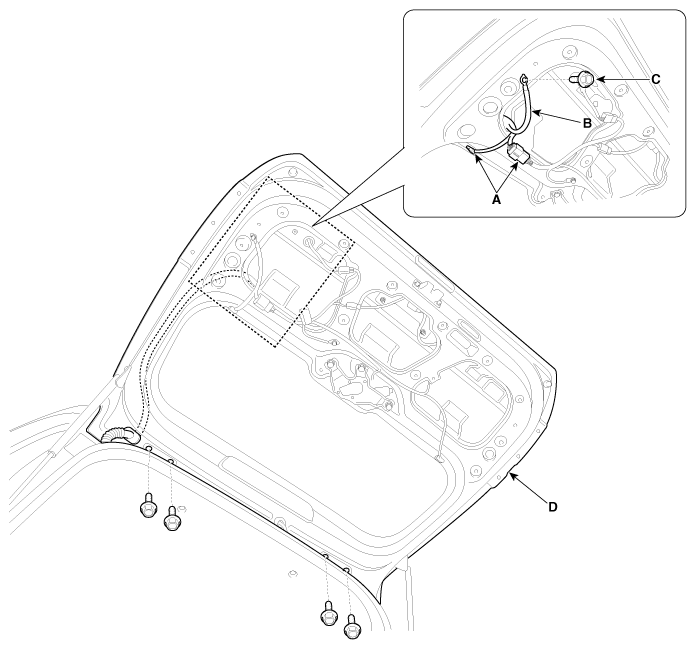

3. Disconnect the connectors (A) and tail gate wiring harness (B).
4. Loosen the ground bolts (C).
5. After loosening the mounting bolts, then remove the tail gate assembly (D).

   Tightening Torque:

   21.6~26.5 N.m (2.2~2.7 kgf.m, 15.9~19.5 lb-ft)

   Fig 2: Disconnecting Connectors And Tail Gate Wiring Harness

   Courtesy of KIA MOTORS AMERICA, INC.
6. Using a screwdriver, lift the socket clips (A) up slightly on both ends of the tail gate lifter (B).
   Fig 3: Lifting Socket Clips On Both Ends Of Tail Gate Lifter

   Courtesy of KIA MOTORS AMERICA, INC.
7. Install in the reverse order of removal.

   Information

   • Make sure the tail gate locks/unlocks and opens/closes properly.
   • Adjust the tail gate alignment.
   • Make sure the connectors are connected in properly.
   • Replace any damaged clips.
