Repair Procedures: Replacement

CAUTION:

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Take care not to scratch the body surface.

Remove the tail gate trim.
(Refer to Tail Gate - "TAIL GATE TRIM ")
Disconnect the back view camera connector (A).

Fig 1: Disconnecting Back View Camera Connector
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the tail gate back panel mounting nuts (A).

Fig 2: Loosening Tail Gate Back Panel Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

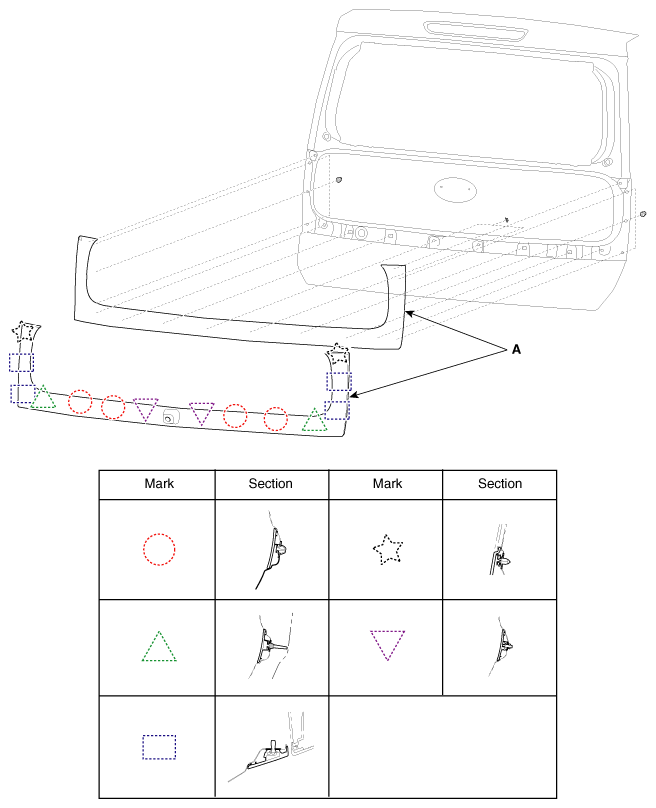

Using a screwdriver or remover, remove the tail gate back panel (A).

Fig 3: Removing Tail Gate Back Panel
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips.
