Repair Procedures: Replacement
CAUTION:
- Put on gloves to protect your hands.
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove both sides of front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
- Remove the rear seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Remove both sides of center pillar lower trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")
- Remove both sides of cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")
- Remove both sides of luggage side trim.
(Refer to Interior Trim - "LUGGAGE SIDE TRIM ")

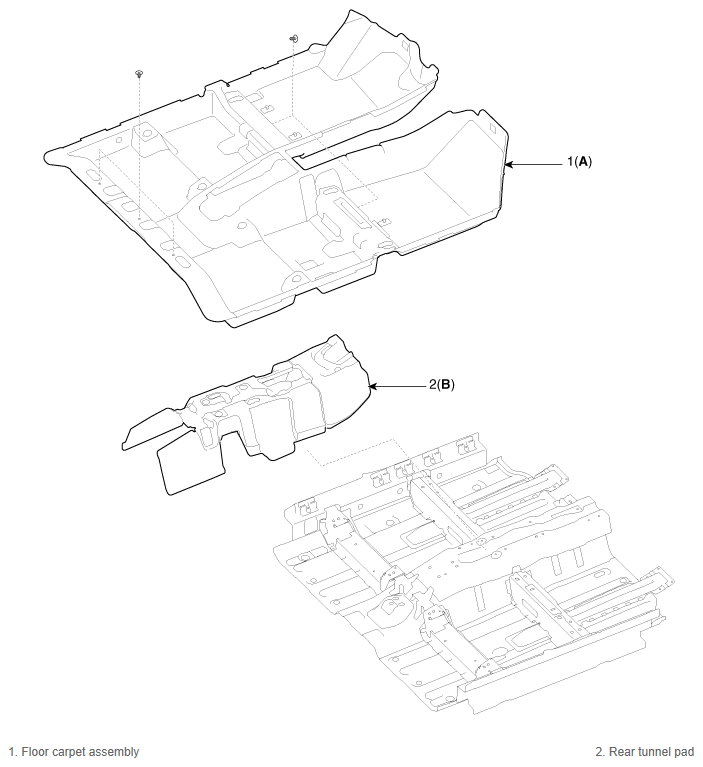

- Remove the floor carpet assembly (A).
- Remove the rear tunnel pad (B).
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
