Electro Chromic Inside Rear View Mirror
›
Components And Components Location
›
Components
Components And Components Location: Components

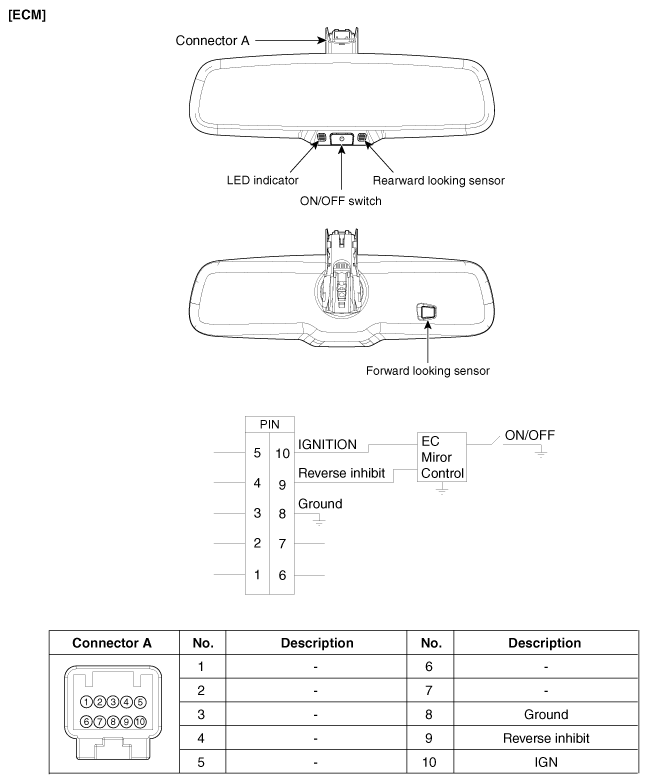

Fig 1: Electro Chromic Inside Rear View Mirror Circuit Diagram And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
