Repair Procedures: Inspection

  1. With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
Fig 1: Locating Power Seat Switch Connector Terminals
G12237905Courtesy of KIA MOTORS AMERICA, INC.

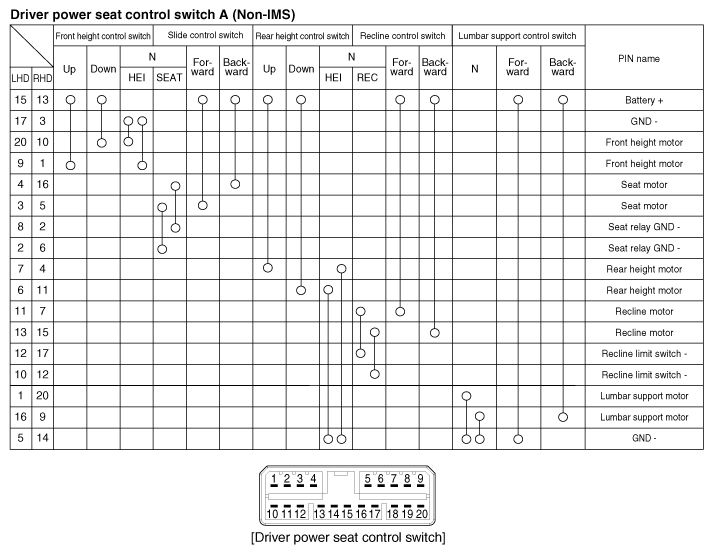

Fig 2: Power Seat Switch Connector Terminals Continuity Chart
G12237906Courtesy of KIA MOTORS AMERICA, INC.
