Monitor KDS/GDS Data

Connect KDS/GDS to DLC (Data Link Cable).
Warm up the engine to normal operating temperature.
Check the "Current Data " with KDS/GDS.

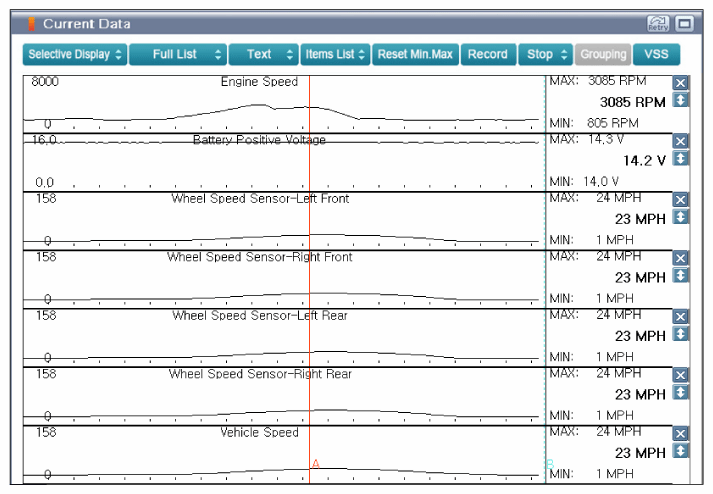

Fig 1: Scantool Display - Normal Current Data At 23MPH
Courtesy of KIA MOTORS AMERICA, INC.
Are the parameters displayed normally?
YES
- The system is operating correctly at this time. Go to "Verification Of Vehicle Repair " procedure.
NO
- Go to "Terminal And Connector Inspection " procedure.
