Component Inspection

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON"
Perform each "Valve" in "Actuation Test " with KDS/GDS.
Check for operation sound of valve while actuating each valve.
Specification: Valve Operating Sound is heard

Fig 1: Scantool Display - Actuation Test (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Scantool Display - Actuation Test (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Are any DTCs stored in the system?
YES
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace HECU and then go to "Verification Of Vehicle Repair " procedure.
  CAUTION:
  In case of replacing HECU, perform following procedures.
  1. "ASP Calibration" for steering angle sensor offset correction.

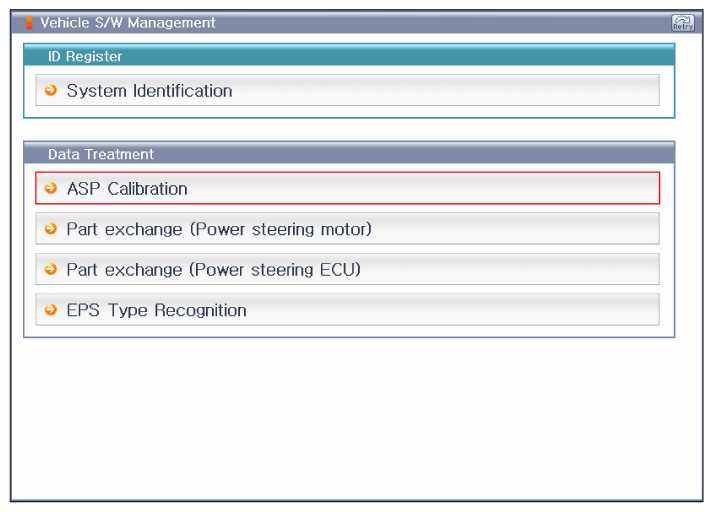

    Fig 3: Scantool Display - Vehicle S/W Management
    Courtesy of KIA MOTORS AMERICA, INC.

    Fig 4: Scantool Display - ASP Calibration
    Courtesy of KIA MOTORS AMERICA, INC.

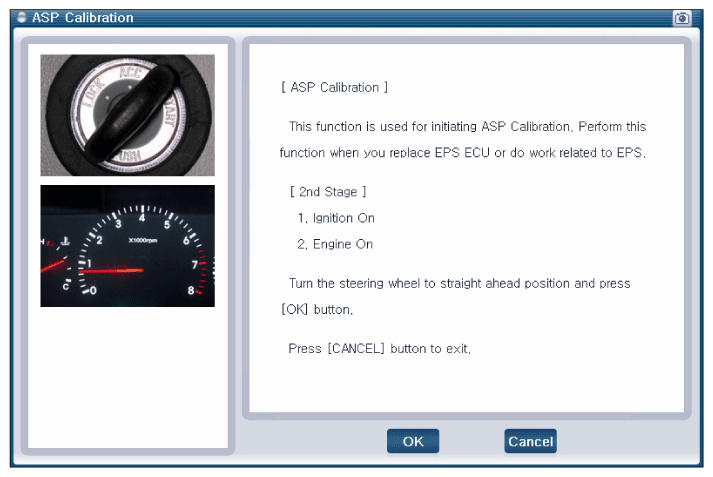

    Fig 5: Scantool Display - ASP Calibration (2nd Stage)
    Courtesy of KIA MOTORS AMERICA, INC.

    Fig 6: Scantool Display - Initializing Completed
    Courtesy of KIA MOTORS AMERICA, INC.
  2. "Longitudinal G-Sensor Calibration" for longitudinal sensor offset correction.

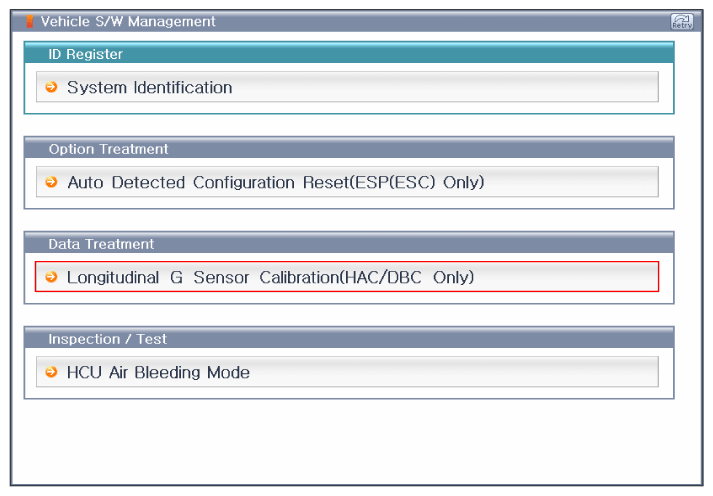

    Fig 7: Scantool Display - Vehicle S/W Management
    Courtesy of KIA MOTORS AMERICA, INC.

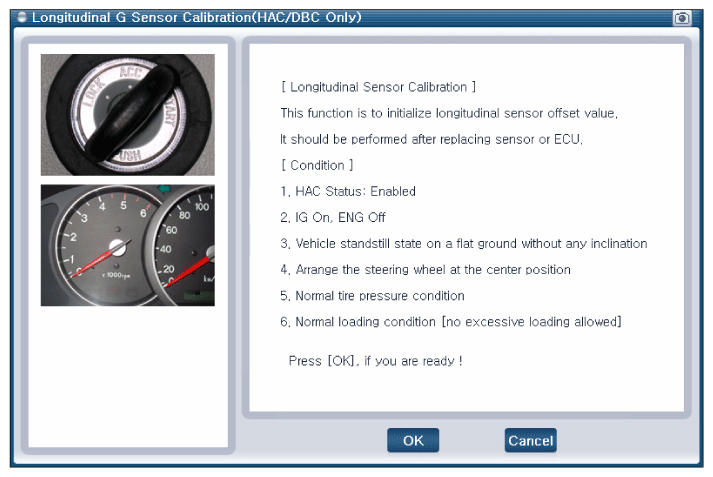

    Fig 8: Scantool Display - Longitudinal G-Sensor Calibration
    Courtesy of KIA MOTORS AMERICA, INC.

    Fig 9: Scantool Display - Longitudinal G-Sensor Calibration (Completed)
    Courtesy of KIA MOTORS AMERICA, INC.
  3. "Auto Detected Configuration Reset (ESP (ESC) Only)

    Fig 10: Scantool Display - Vehicle S/W Management
    Courtesy of KIA MOTORS AMERICA, INC.

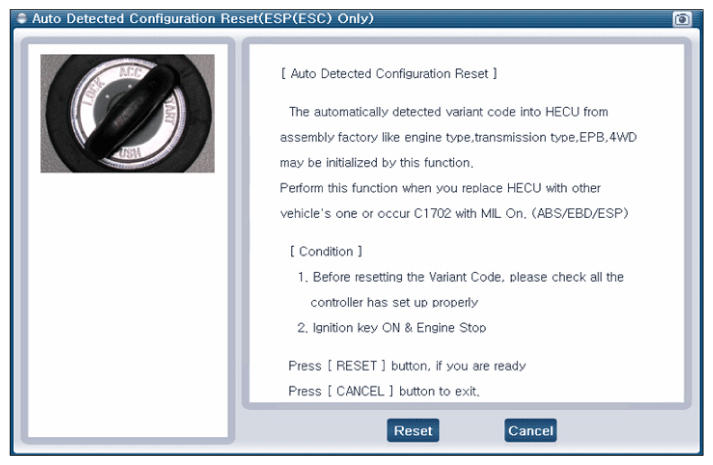

    Fig 11: Scantool Display - Auto Detected Configuration Reset
    Courtesy of KIA MOTORS AMERICA, INC.

    Fig 12: Scantool Display - Auto Detected Configuration Reset (Completed)
    Courtesy of KIA MOTORS AMERICA, INC.
