Alternator
›
Components And Components Location
›
Components
Components And Components Location: Components

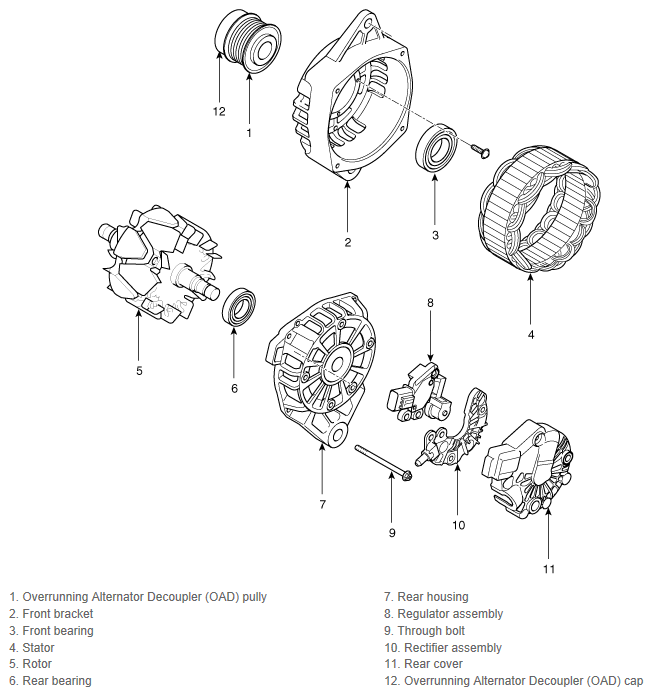

Fig 1: Alternator Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
