Home › Kia › 2017 › Soul Base, Automatic Trans › Repair and Diagnosis › Electrical › Charging Systems › Charging System - 1.6L › Battery › Troubleshooting

Charging System - 1.6L: Battery: Troubleshooting

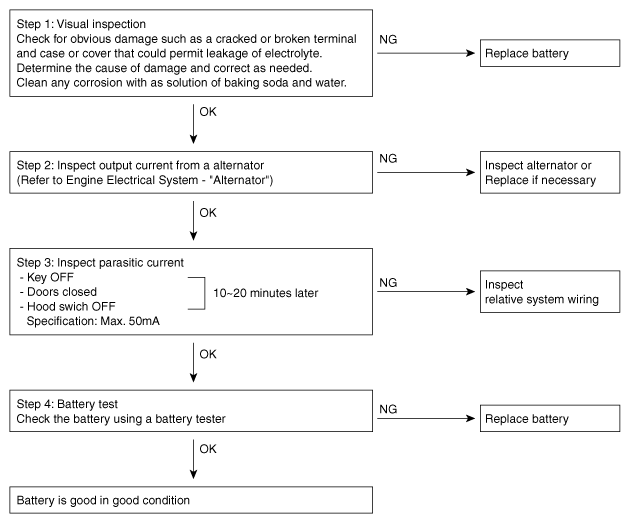

Fig 1: Battery Troubleshooting Chart
G12227088Courtesy of KIA MOTORS AMERICA, INC.
