Engine Control System - 1.6L
›
Camshaft Position Sensor (CMPS)
›
Troubleshooting
›
Wave Form
Wave Form

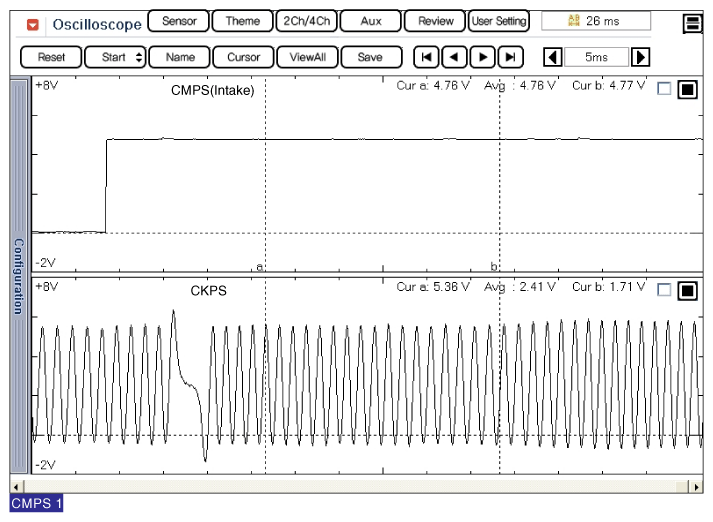

Fig 1: Scantool Display - Camshaft Position Sensor 1 Waveform
Courtesy of KIA MOTORS AMERICA, INC.

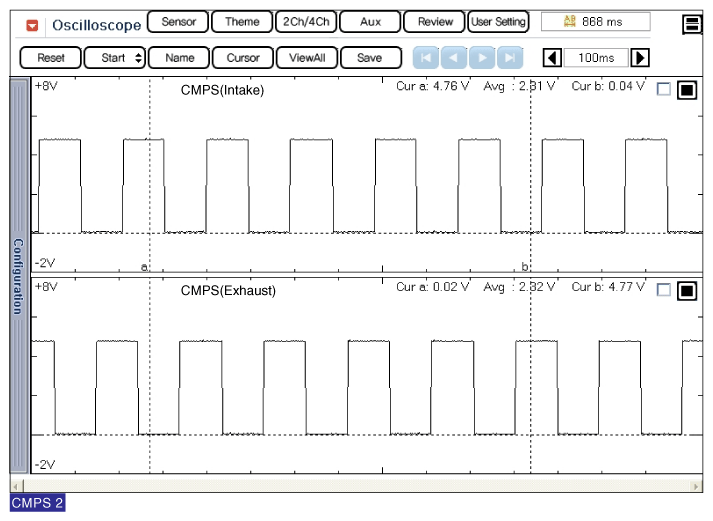

Fig 2: Scantool Display - Camshaft Position Sensor 2 Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
