Circuit Diagram: (A/T)

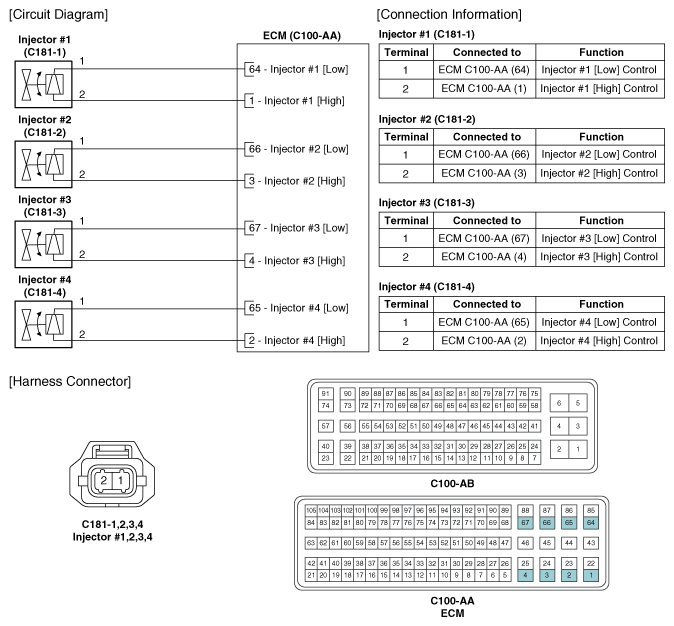

Fig 1: Injector Circuit Diagram (A/T) And Connector End View
G12227294Courtesy of KIA MOTORS AMERICA, INC.
