Circuit Diagram: (A/T)

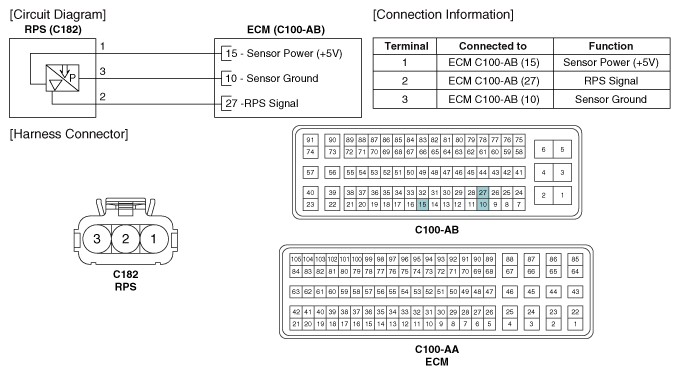

Fig 1: Rail Pressure Sensor Circuit Diagram (A/T) And Connector End View
G12227276Courtesy of KIA MOTORS AMERICA, INC.
