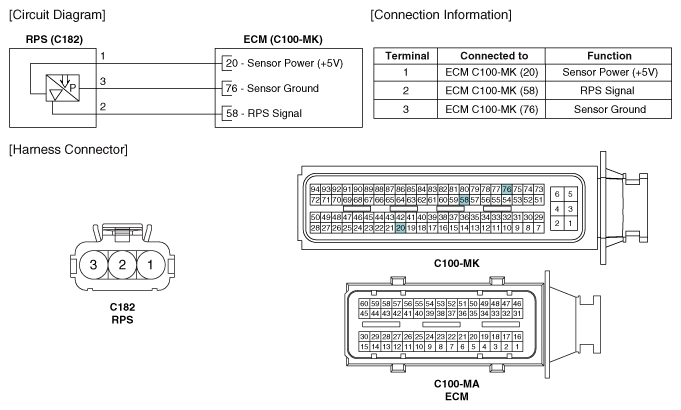

Home › Kia › 2017 › Soul Base, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Rail Pressure Sensor (RPS) › Schematic Diagrams › Circuit Diagram › (M/T)
