Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

  3. Disconnect the connector (A) and then remove the field effect transistor (B) after loosening the mounting screws.

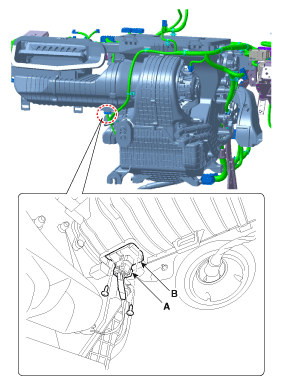

    Fig 1: Removing Field Effect Transistor Mounting Screws
    G12238141Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
