Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the driver's side shower duct (A) after loosening the screw.
    Fig 1: Removing Driver Side Shower Duct Screw
    G12238198Courtesy of KIA MOTORS AMERICA, INC.

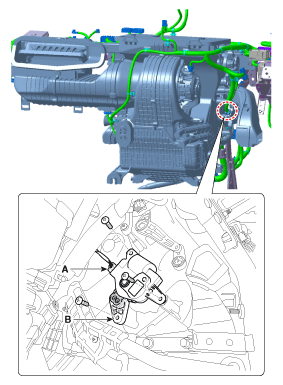

  4. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.
    Fig 2: Removing Temperature Control Actuator Mounting Screws
    G12238199Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
