[Sensor Status initialization]

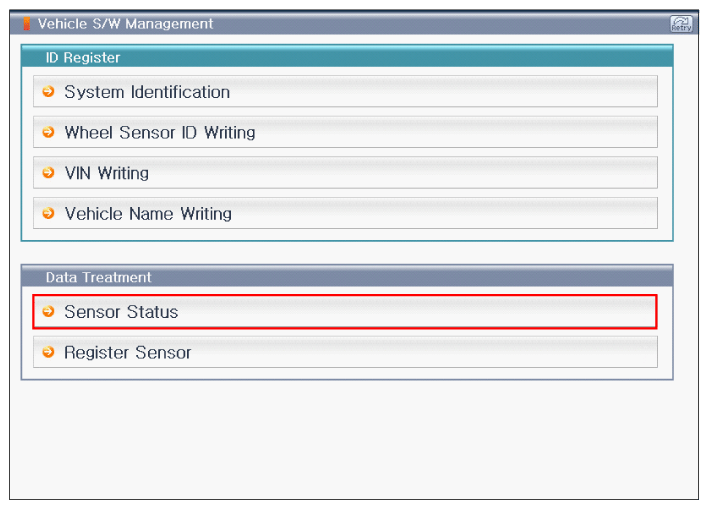

Fig 1: Scantool Display - Vehicle S/W Management

Courtesy of KIA MOTORS AMERICA, INC.

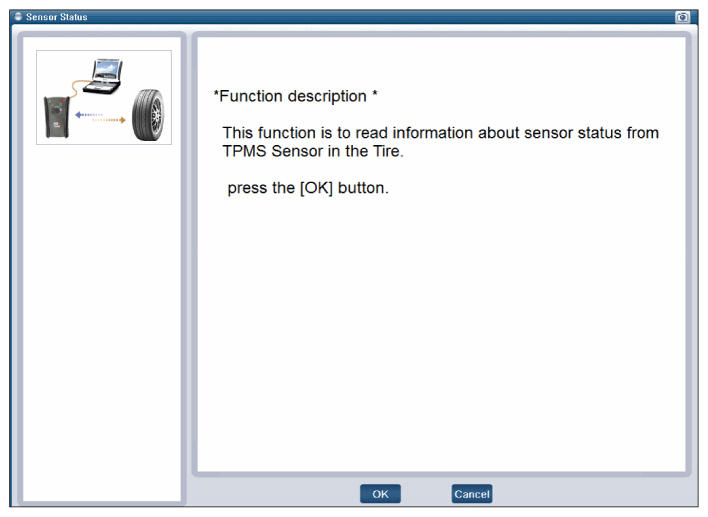

Fig 2: Scantool Display - Sensor Status (Function Description)

Courtesy of KIA MOTORS AMERICA, INC.

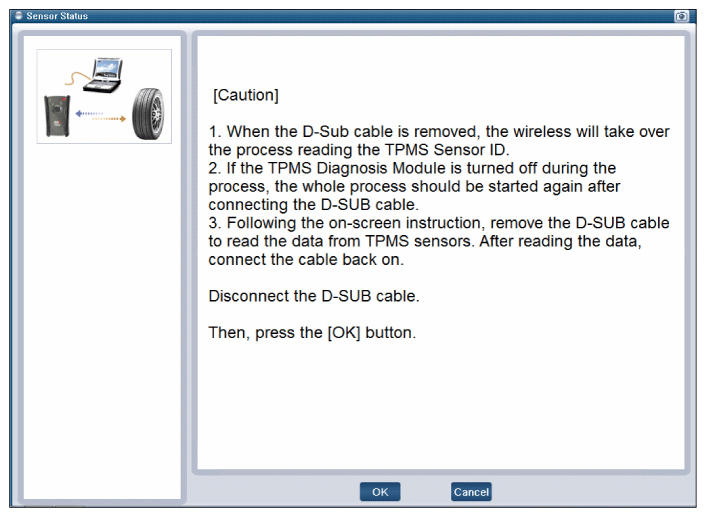

Fig 3: Scantool Display - Sensor Status (Caution)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Scantool Display - Sensor Status

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Scantool Display - Sensor Status (Wireless Mode)

Courtesy of KIA MOTORS AMERICA, INC.

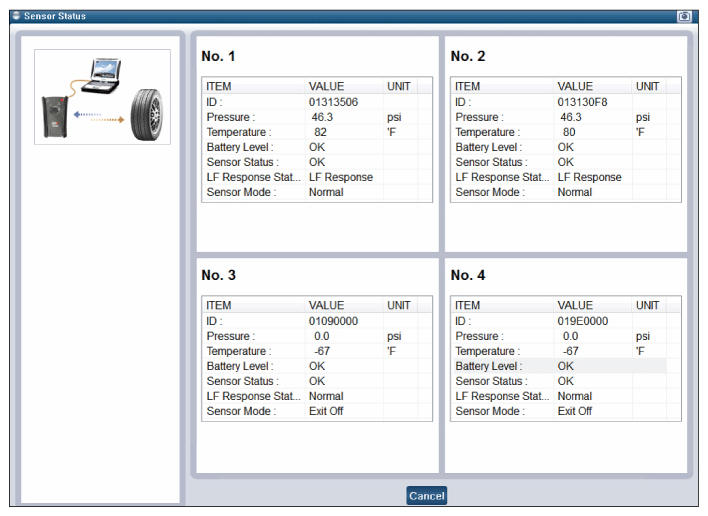

Fig 6: Scantool Display - Sensor Status

Courtesy of KIA MOTORS AMERICA, INC.
