Automatic Transaxle System - 1.6L
›
Automatic Transaxle
›
Components And Components Location
›
Components Location
Components Location

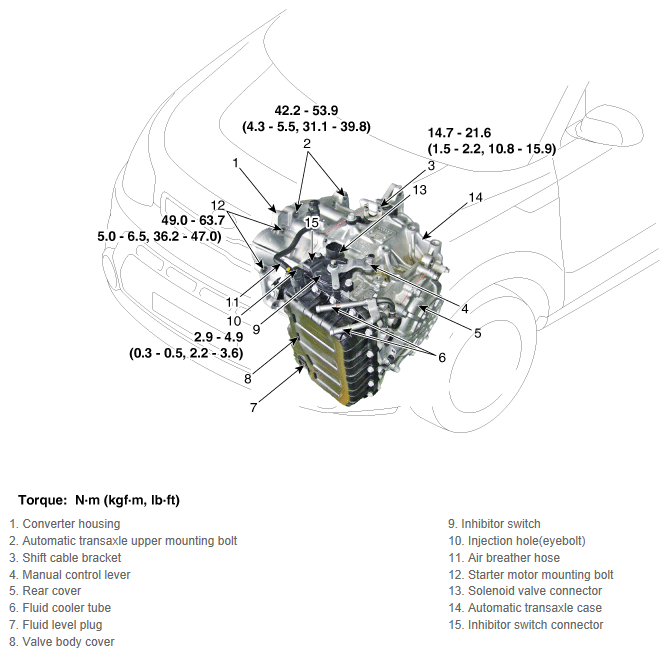

Fig 1: Automatic Transaxle Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
