Automatic Transaxle Control System - 1.6L
›
Inhibitor Switch
›
Troubleshooting
Inhibitor Switch: Troubleshooting

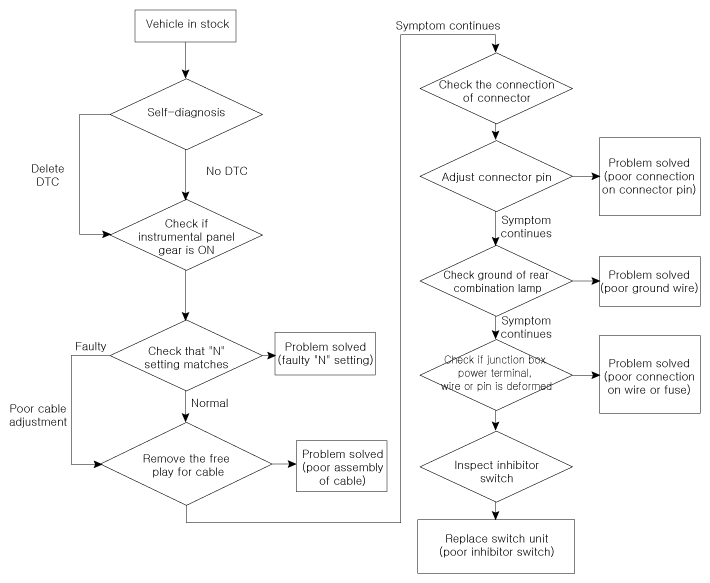

Fig 1: Inhibitor Switch Troubleshooting Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
