Repair Procedures: Installation

  1. Install in the reverse order of removal.

    Verticle angle : -1 ± 0.4°

  2. Perform SCC variant coding.

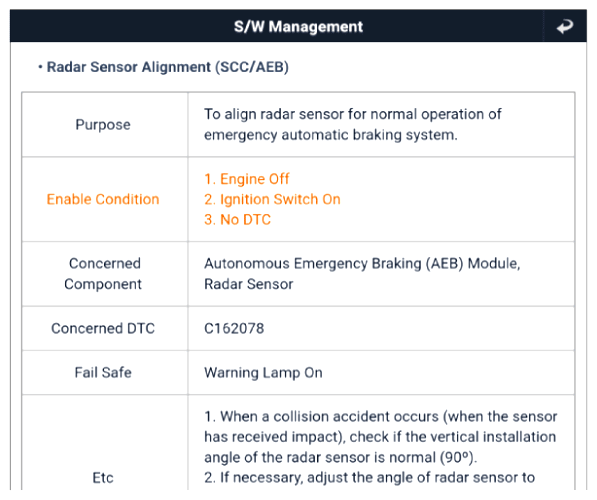

    G12394093Courtesy of KIA MOTORS AMERICA, INC.

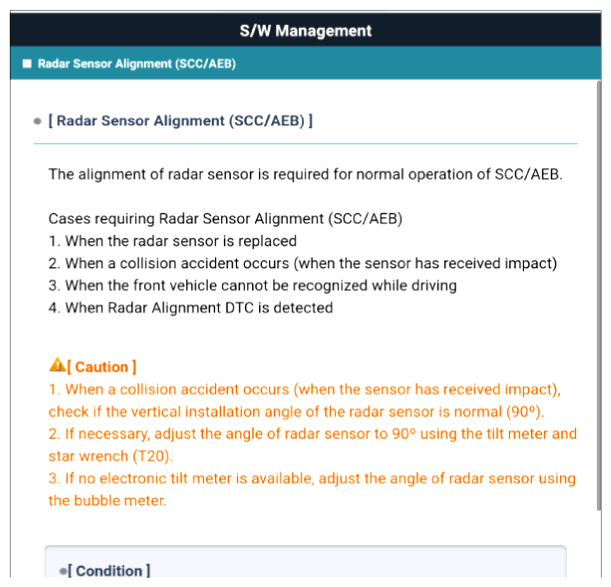

    G12394094Courtesy of KIA MOTORS AMERICA, INC.

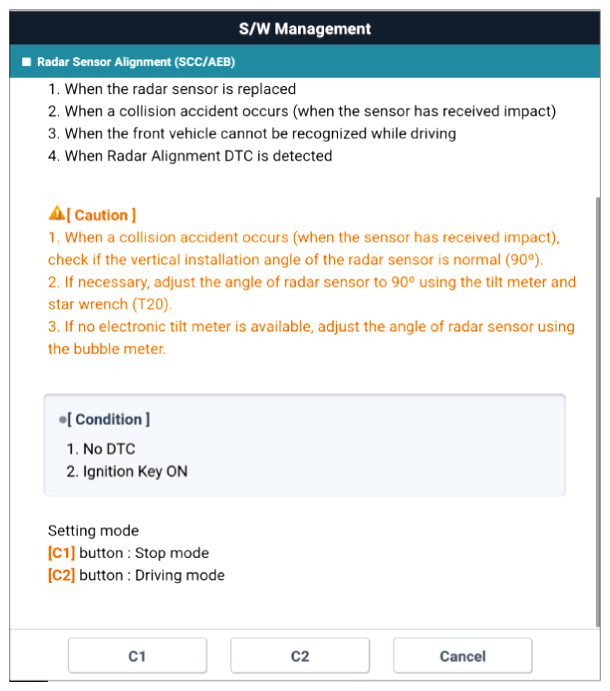

    G12394095Courtesy of KIA MOTORS AMERICA, INC.

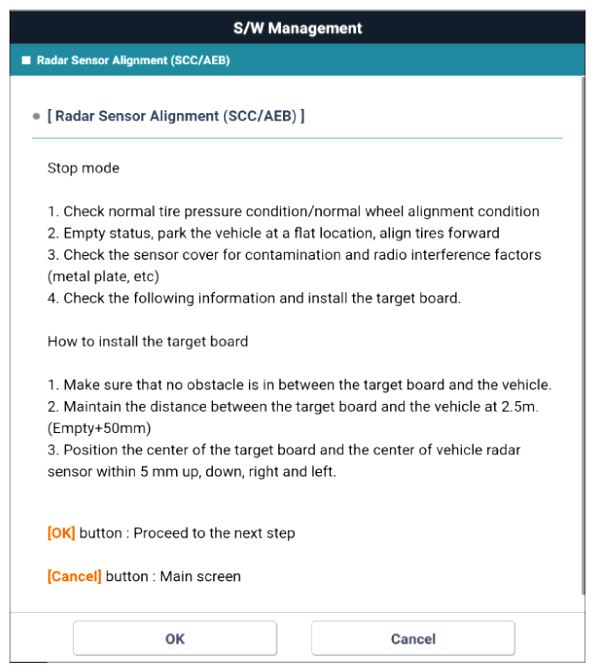

    G12394096Courtesy of KIA MOTORS AMERICA, INC.

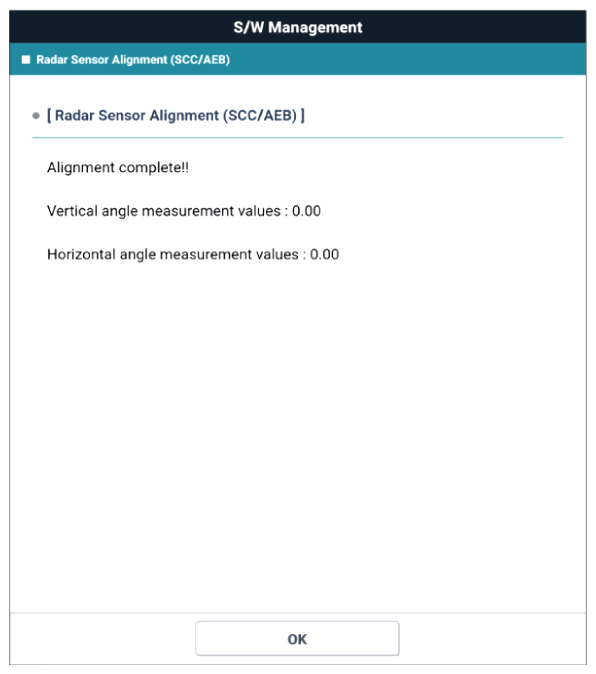

    G12394097Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the SCC radar alignment.

    (Refer to Engine Electrical System - "SMART CRUISE CONTROL (SCC) ALIGNMENT ")
