Indicator ON/OFF Condition According To Ignition

No.	Ignition conditions	Start Button LED status
1	IG OFF	LED OFF
2	IG ACC	Amber color LED ON
3	IG ON (Engine OFF)	Reddish orange color LED ON
4	Cranking	Maintain LED status before cranking
5	Engine running	LED OFF

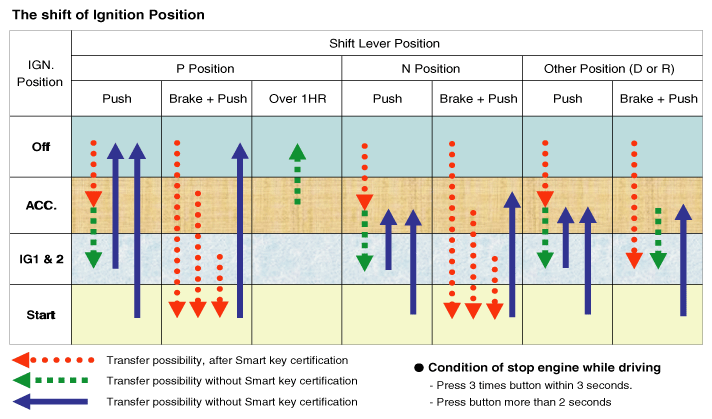

Fig 1: Shift Of Ignition Position Chart

Courtesy of KIA MOTORS AMERICA, INC.
