Components And Components Location: Components

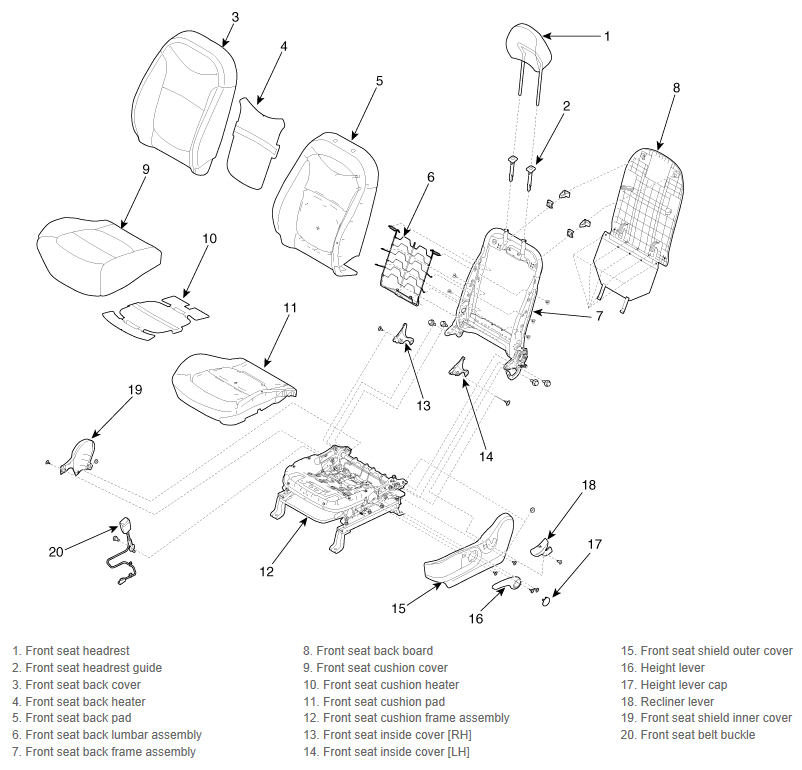

Fig 1: Front Seat Components
G11934153Courtesy of KIA MOTORS AMERICA, INC.
