Kia
›
2017
›
Soul EV Base
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Windows
›
Power Window Switch
›
Schematic Diagrams
›
Circuit Diagram
›
Rear Power Window Switch
Rear Power Window Switch

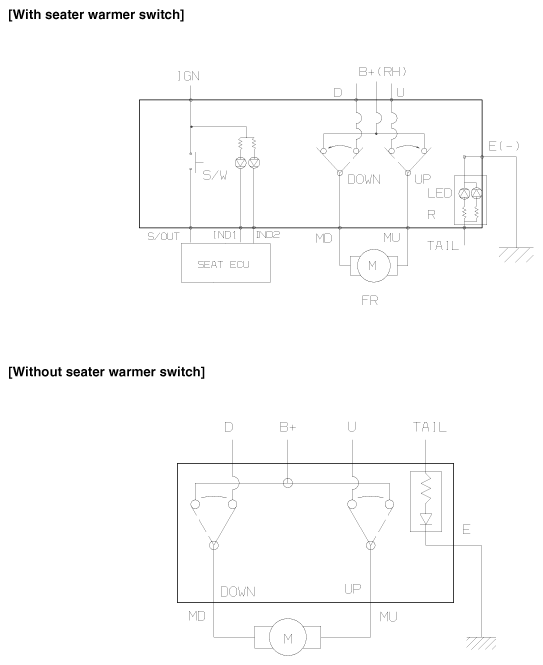

Fig 1: Rear Power Window Switch
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
