Pressure Sensor Calibration

Connect GDS to DLC (Data Link Cable).
Select the "Vehicle S/W Management" about related DTC with GDS.

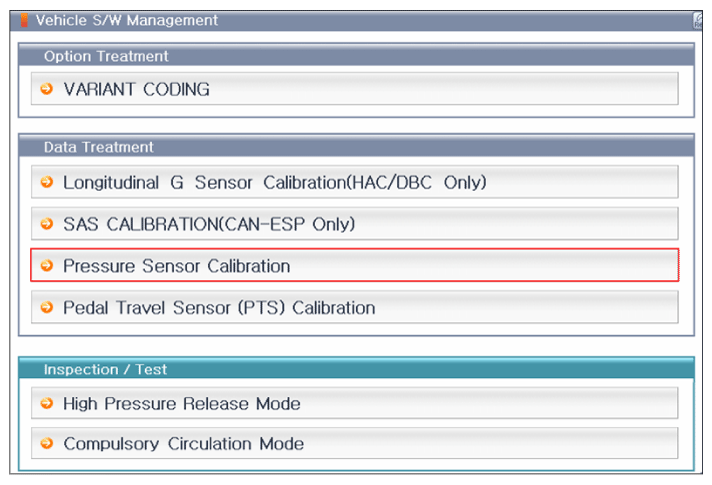

Fig 1: Display - Pressure Sensor Calibration Screen
Courtesy of KIA MOTORS AMERICA, INC.

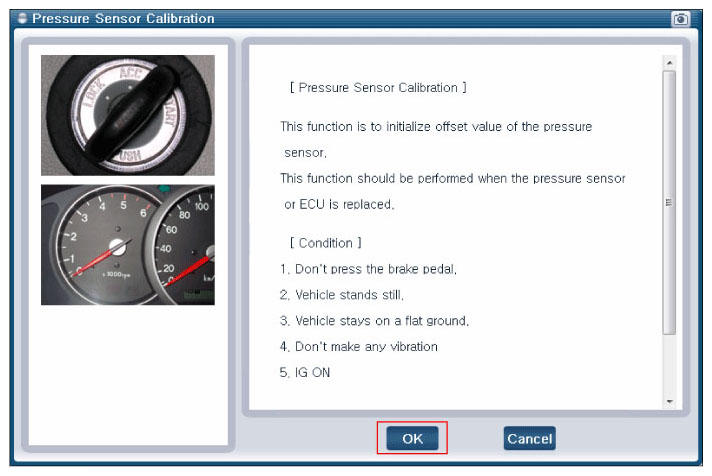

Fig 2: Select Pressure Sensor Calibration OK Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Display - Message Completion Screen
Courtesy of KIA MOTORS AMERICA, INC.

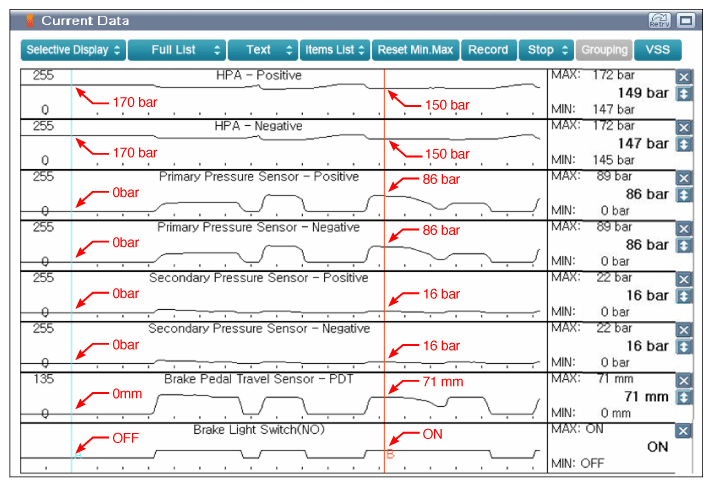

Fig 4: Display - Brake Pedal Step EV Mode Screen
Courtesy of KIA MOTORS AMERICA, INC.
- A (brake pedal "OFF" (0mm)): HPA - Approx. 170bar
  Primary pressure Sensor - 0bar

  Secondary pressure Sensor - 0bar
- B (brake pedal "ON" (71mm)): Approx. 140 ~ 150bar
  Primary pressure Sensor - Approx. 86bar

  Secondary pressure Sensor - Approx. 16bar
Are the parameters displayed correctly?
YES
- Fault might be intermittent caused by poor contact in the sensor's and/or ECU's connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Vehicle Repair " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace IBAU and perform "Vehicle S/W Management".
