Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

  3. Disconnect the connector of the immobilizer unit and then remove the immobilizer unit (A) after loosening a bolt.

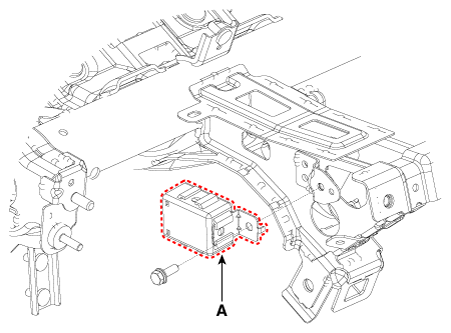

Fig 1: Locating Immobilizer Unit With Bolt
G12298522Courtesy of KIA MOTORS AMERICA, INC.
