Repair Procedures: Inspection

  1. Remove the trunk inner switch.
  2. Check for continuity between terminals of the trunk inner switch.

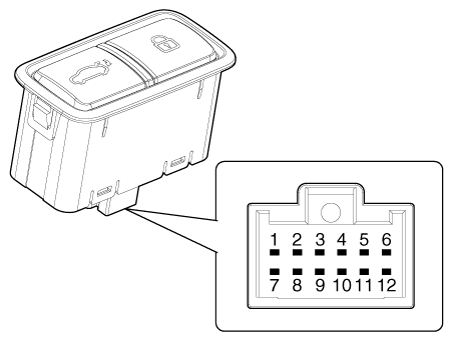

Fig 1: Trunk Inner Switch Connector End View
G12298839Courtesy of KIA MOTORS AMERICA, INC.

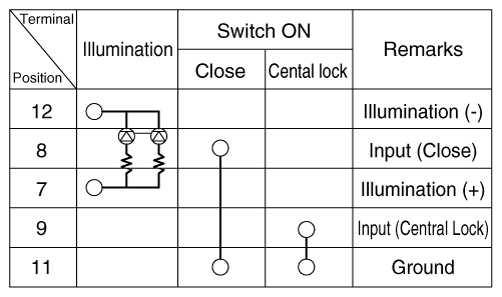

Fig 2: Trunk Inner Switch Terminal Continuity Chart
G12298840Courtesy of KIA MOTORS AMERICA, INC.
