Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim after opening the trunk.

    (Refer to Body - "TRUNK LID TRIM ")

  3. Remove the trunk inner switch (A) by pushing two hooks.

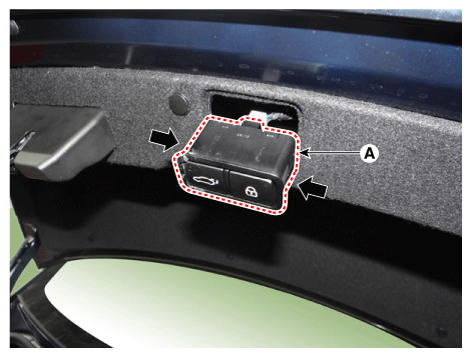

    Fig 1: Locating Trunk Inner Switch
    G12298841Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the trunk inner switch connector (A).

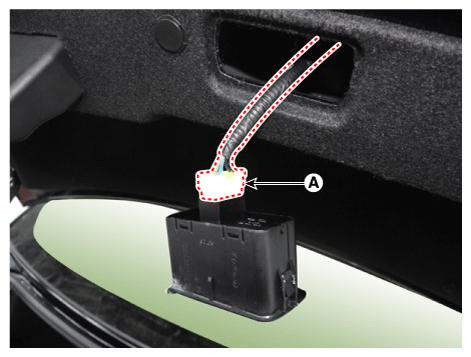

Fig 2: Locating Trunk Inner Switch Connector
G12298842Courtesy of KIA MOTORS AMERICA, INC.
