Repair Procedures: Inspection: Notes

Disconnect the negative (-) battery terminal.
Remove the left luggage side trim.
(Refer to Body - "TRUNK TRIM ")
Disconnect the motor connector.
Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

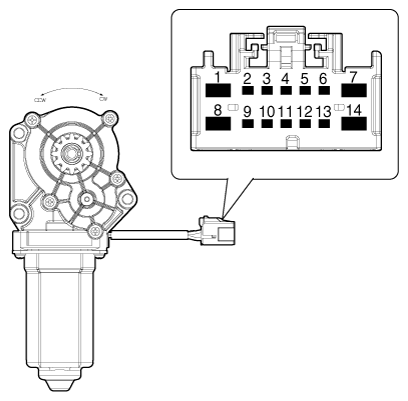

Fig 1: Locating Drive Unit Connector End View
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Drive Unit Terminal Position Chart
Courtesy of KIA MOTORS AMERICA, INC.
