Power Trunk Lid Module & Drive Unit

1. Disconnect the negative (-) battery terminal.
2. Remove the left luggage side trim after opening the trunk. (Refer to Body - "TRUNK TRIM ")

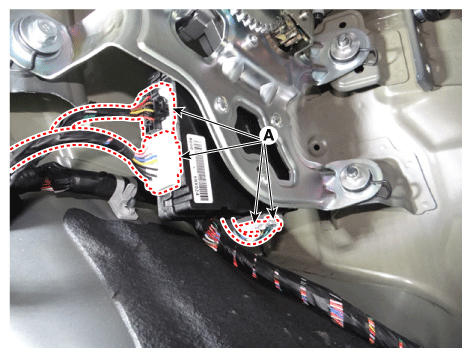

3. Disconnect the drive unit connectors (A).
   Fig 1: Locating Drive Unit Connectors

   Courtesy of KIA MOTORS AMERICA, INC.

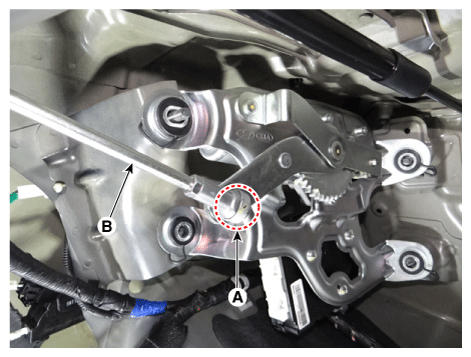

4. Separate the power trunk lid module push rod pin (A) and then remove the power trunk lid module connecting rod (B).
   Fig 2: Locating Power Trunk Lid Module Connecting Rod Pin & Rod

   Courtesy of KIA MOTORS AMERICA, INC.

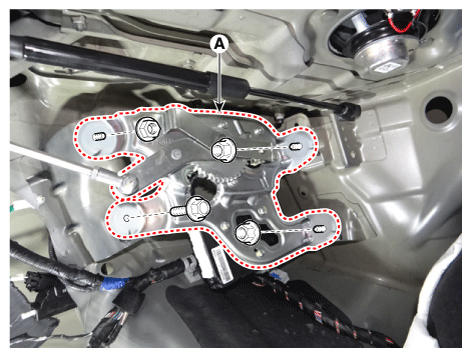

5. Remove the power trunk lid module & drive unit (A) after loosening the mounting bolt and nuts.

Fig 3: Locating Power Trunk Lid Module & Drive Unit Mounting Bolt & Nuts

Courtesy of KIA MOTORS AMERICA, INC.
