Repair Procedures: Inspection

  1. Check for continuity between terminals of the power trunk switch.

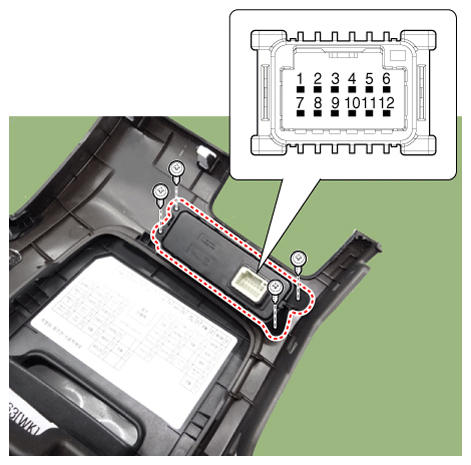

Fig 1: Crash Pad Lower Switch With Connector End View
G12298845Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Crash Pad Lower Switch Terminal Continuity Chart
G12298846Courtesy of KIA MOTORS AMERICA, INC.
