Schematic Diagrams
›
Schematic Diagram
›
EPB Not Applied
EPB Not Applied

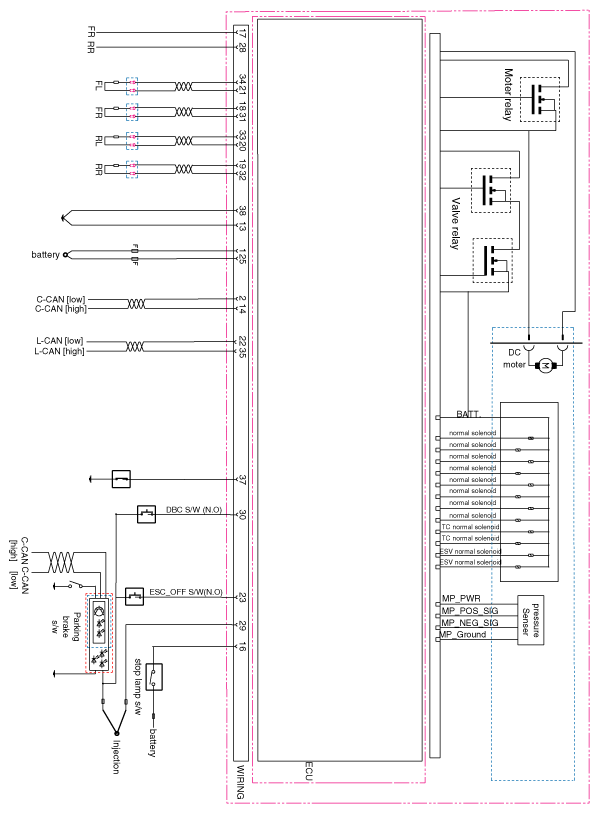

Fig 1: Electronic Stability Program System (EPB Not Applied)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
