Home › Kia › 2018 › Cadenza Technology › Repair and Diagnosis › Electrical › Body Electrical › Wireless Power Charger System › Wireless Charging Lamp › Components And Positions › Components

Components And Positions: Components

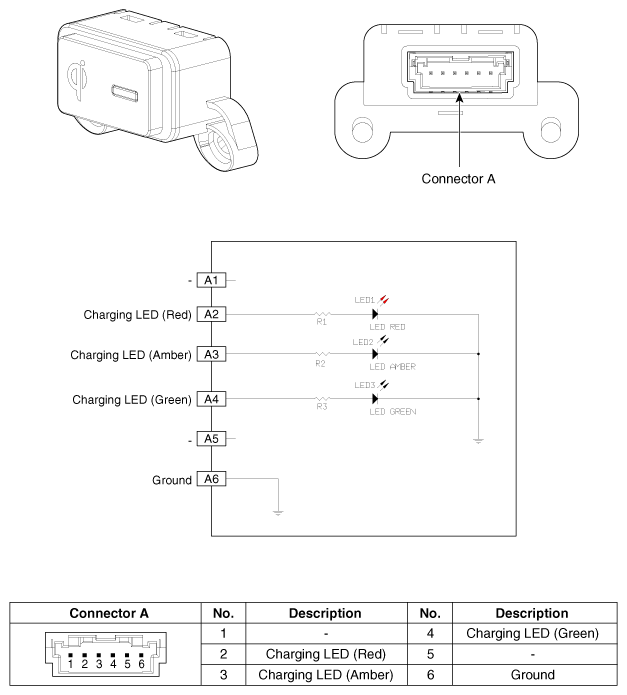

Fig 1: Wireless Charging Lamp Components Location With Connector End View
G12288328Courtesy of KIA MOTORS AMERICA, INC.
