Repair Procedures: Inspection

1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.

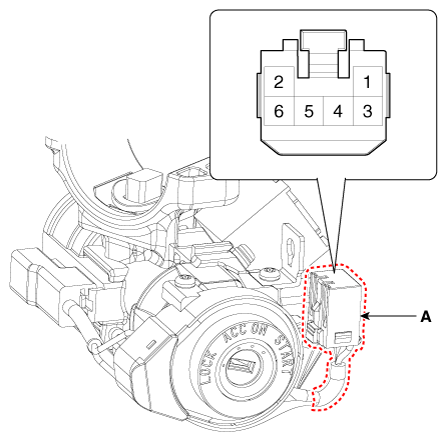

   Fig 1: Locating Warning Switch With Connector End View

   Courtesy of KIA MOTORS AMERICA, INC.

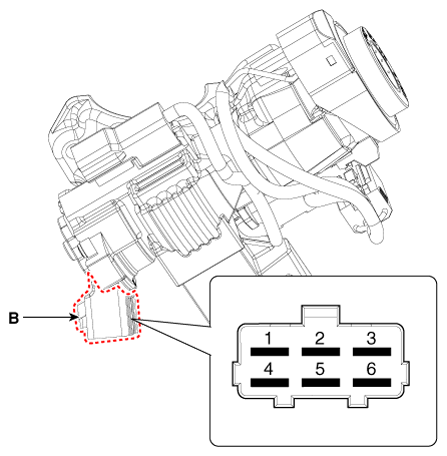

   Fig 2: Locating Ignition Switch With Connector End View

   Courtesy of KIA MOTORS AMERICA, INC.
2. Check for continuity between the terminals.
3. If continuity is not as specified, replace the switch.

Fig 3: Ignition Switch Assembly Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
