Engine Control System Diagnosis - 2.0L GDI (3 Of 3)
›
DTC P1566: Analog Battery Sensor Circuit
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

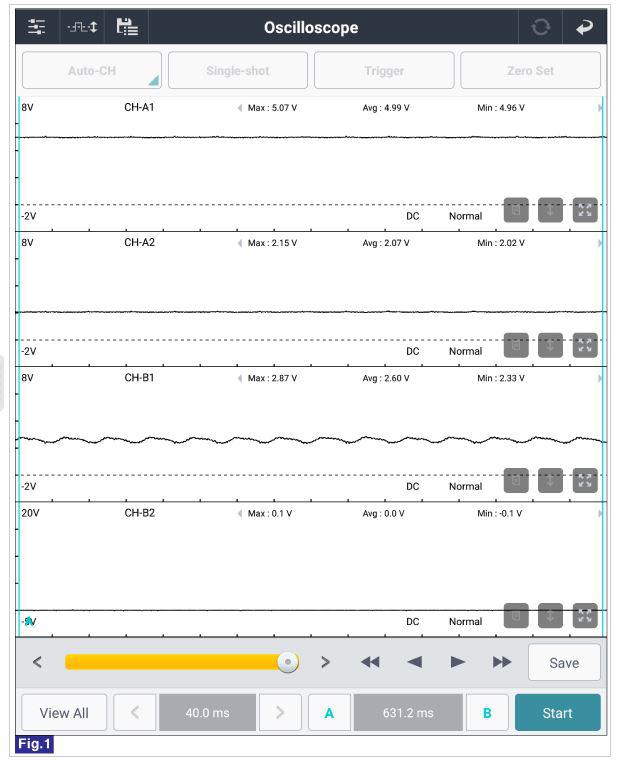

Fig 1: Screen Display - Normal Waveforms Of Battery Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
