Section 78 (Hybrid Motor Control System)
›
Resolver Sensor
›
Schematic Diagrams
›
Part Circuit Diagram
Part Circuit Diagram
WARNING:
This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

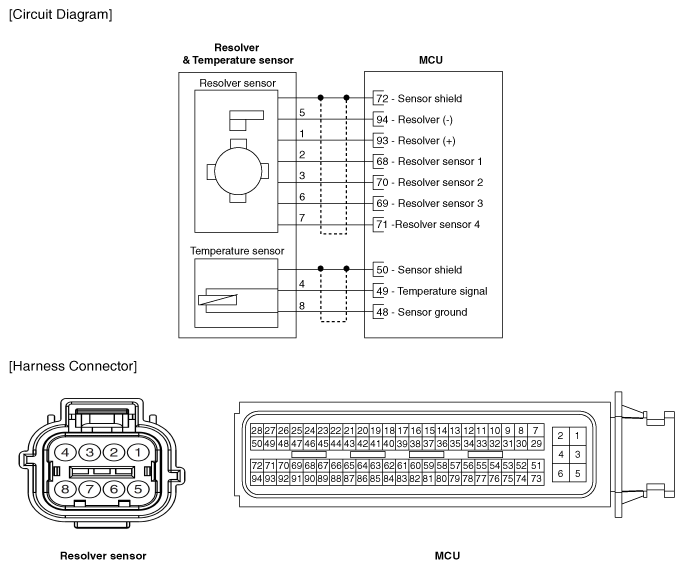

[Hybrid Drive Motor]
Fig 1: Hybrid Drive Motor System Circuit
Courtesy of KIA MOTORS AMERICA, INC.

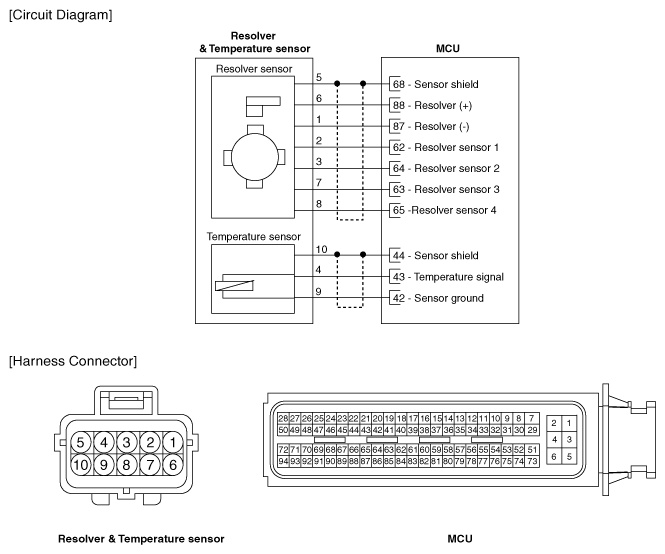

[HSG]
Fig 2: HSG System Circuit
Courtesy of KIA MOTORS AMERICA, INC.
