Repair Procedures: Inspection

Switch "OFF" Ignition.
Remove the Battery and Battery Tray.
(Refer to Engine Electrical System - "BATTERY ")
Disconnect the main connector (A).

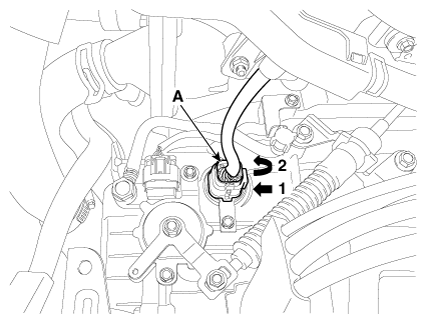

Fig 1: Disconnecting Main Connector
Courtesy of KIA MOTORS AMERICA, INC.
Measure the Resistance between power terminal (5) and signal terminal (17).
Specification : 5.3 ± 0.3 Ω

Fig 2: Solenoid Valve Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
