Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the breather hose (A).

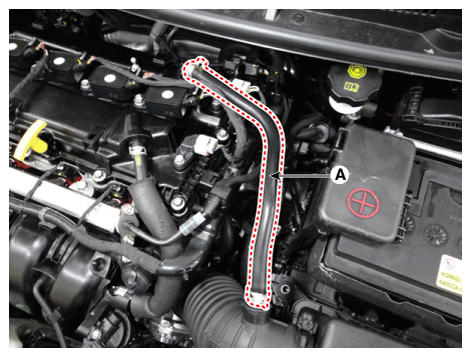

    Fig 1: Disconnecting Breather Hose
    G12165642Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the purge control solenoid valve connector (A).
  4. Disconnect the vapor hoses (B) from the purge control solenoid valve.
  5. Remove the valve (C) from the surge tank after pulling it.
Fig 2: Disconnecting Purge Control Solenoid Valve Connector
G12165643Courtesy of KIA MOTORS AMERICA, INC.
