Repair Procedures: Removal
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the crash pad center lower panel.
(Refer to Body - "CRASH PAD CENTER PANEL ")

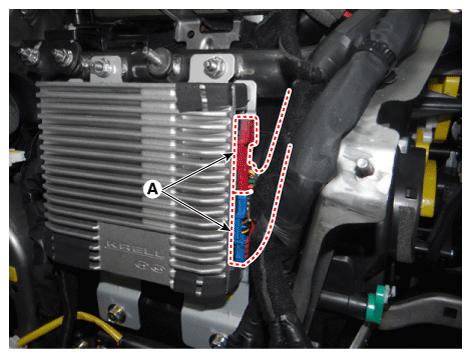

- Disconnect the external amplifier connectors (A).

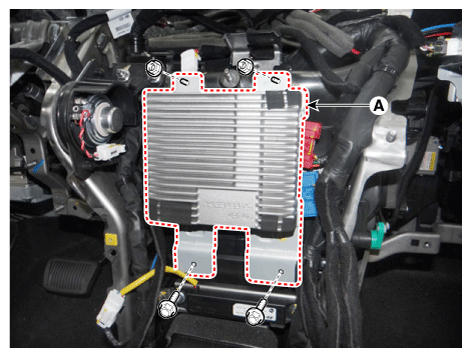

- Remove the external amplifier (A) after loosening the mounting bolts and nuts.
