Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the M-terminal (A) on the magnet switch assembly.

Fig 1: Disconnect M-Terminal On Magnet Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the screws (A), detach the magnet switch assembly (B).

Fig 2: Detach Magnet Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the through bolts (A).

Fig 3: Loosen Through Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brush holder assembly (A), armature assembly (B) and yoke assembly (C).

Fig 4: Remove Brush Holder, Armature & Yoke Assemblies
Courtesy of KIA MOTORS AMERICA, INC.

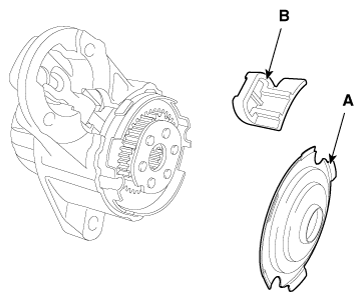

Remove the gasket sheet (A) and lever stop (B).

Fig 5: Remove Gasket Sheet & Lever Stop
Courtesy of KIA MOTORS AMERICA, INC.

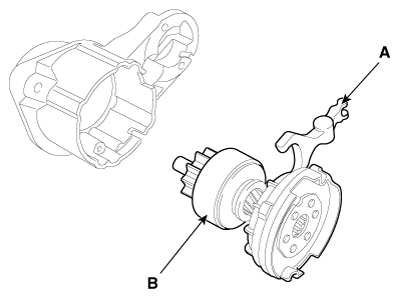

Remove the reducer assembly (A) and lever (B).

Fig 6: Remove Reducer Assembly & Lever
Courtesy of KIA MOTORS AMERICA, INC.
Press the stopper (A) using a socket (B).

Fig 7: Pressing Stopper Using Socket
Courtesy of KIA MOTORS AMERICA, INC.

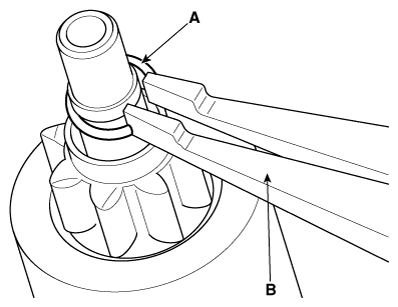

After removing the stop ring (A) using stop ring pliers (B).

Fig 8: Removing Stop Ring Using Stop Ring Pliers
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the stopper (A), overrunning clutch (B) and internal gear (C).

Fig 9: Disconnect Stopper, Overrunning Clutch & Internal Gear
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).

Fig 10: Pulling Overrunning Clutch Stopper Over Stop Ring
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.
