Repair Procedures: Removal

Shift the gear to "N".
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER - 2.OL MPI NU ")

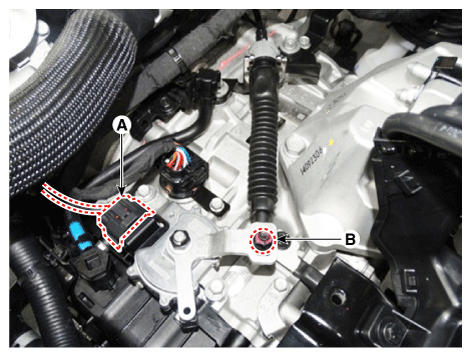

Disconnect the inhibitor switch connector (A) and loosen the shift cable mounting nut (B).

Fig 1: Disconnecting Inhibitor Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

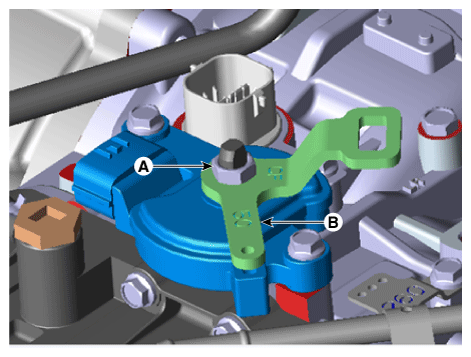

Remove the Manual Control Lever (B) and the washer after removing a nut (A).

Fig 2: Removing Manual Control Lever
Courtesy of KIA MOTORS AMERICA, INC.

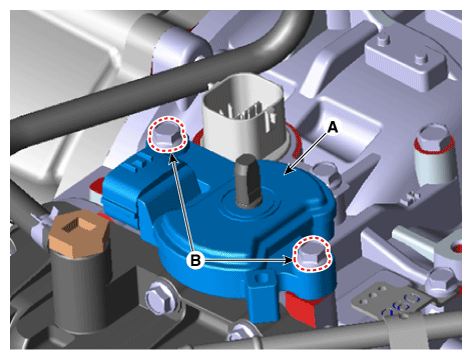

Remove the inhibitor switch (A) after loosening the bolts (B).

Fig 3: Removing Inhibitor Switch
Courtesy of KIA MOTORS AMERICA, INC.
