Automatic Transaxle Control System - 2.0L MPI Nu (A6GF1)
›
Speed Sensor
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

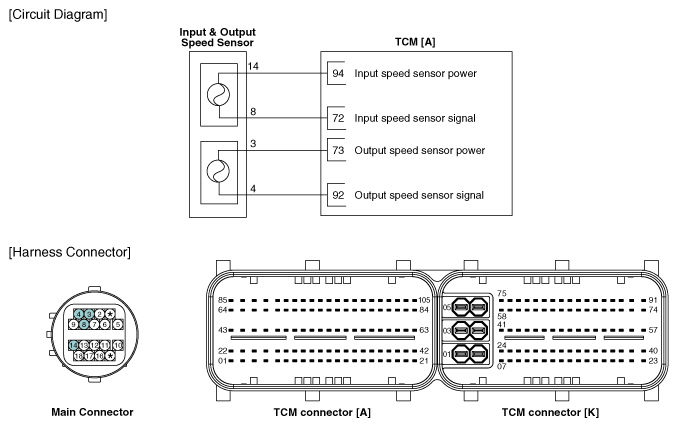

Fig 1: Speed Sensor System Circuit And Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
