Signal Waveform & Data

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

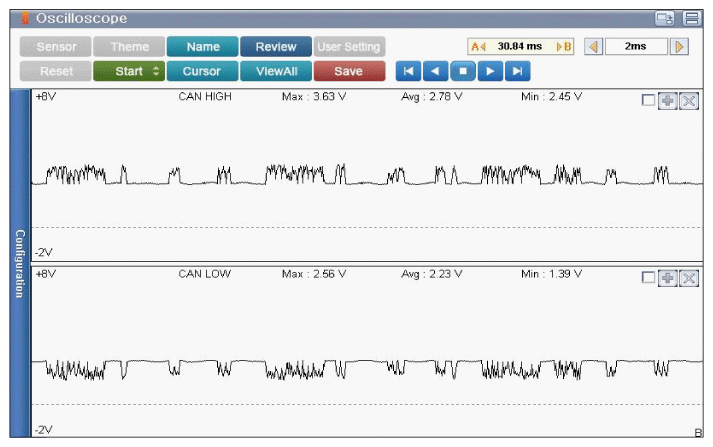

Fig 1: Screen Display - Normal C-CAN (High & Low) Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Screen Display - C-CAN Bus Voltage Level (High Speed CAN)

Courtesy of KIA MOTORS AMERICA, INC.
