Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

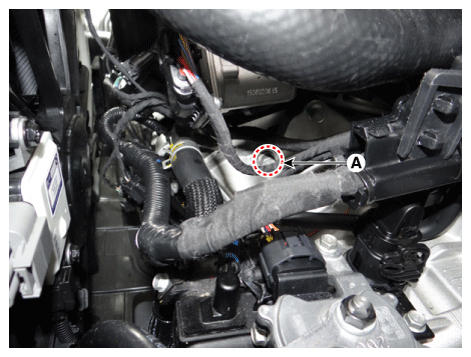

Remove the starter mounting upper bolt (A).
Starter mounting upper bolt:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Fig 1: Locating Starter Mounting Upper Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.

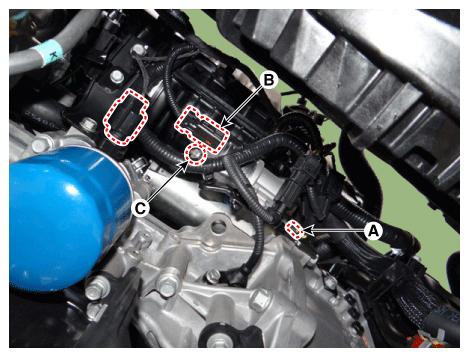

Remove the harness bracket mounting bolt (A).
Disconnect the oil pressure switch connector (B) and starter "ST" connector.
Disconnect the starter "B" terminal cable after loosening the tightening nut (C).

Fig 2: Disconnect Oil Pressure Switch & Starter Connectors
Courtesy of KIA MOTORS AMERICA, INC.

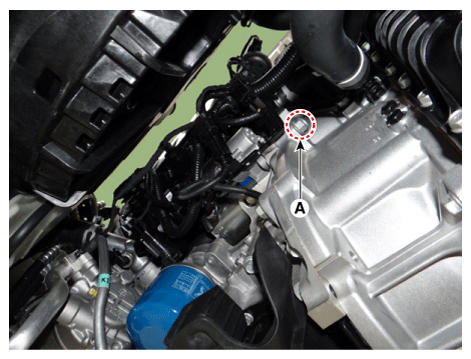

Remove the starter mounting lower bolt (A).
Starter mounting lower bolt:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Fig 3: Locating Starter Mounting Lower Bolt
Courtesy of KIA MOTORS AMERICA, INC.

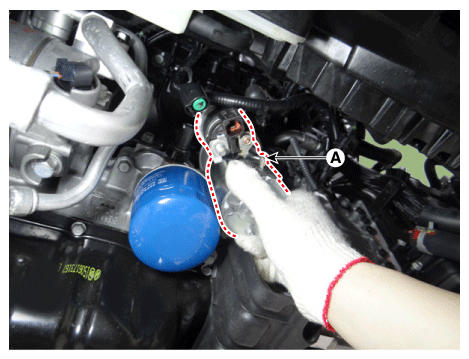

Remove the starter (A).

Fig 4: Removing Starter

Courtesy of KIA MOTORS AMERICA, INC.

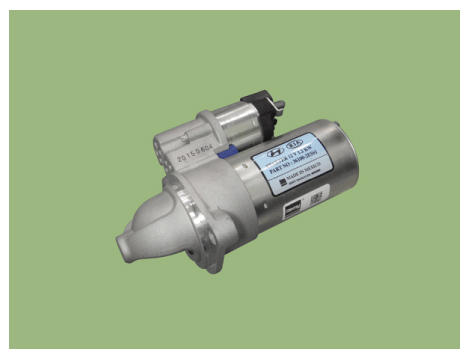

Fig 5: Starter

Courtesy of KIA MOTORS AMERICA, INC.
