[Driver Side]
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.
- Remove the main crash pad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ".)

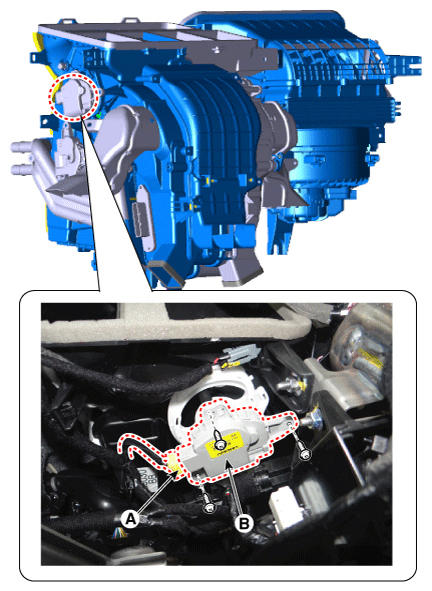

- Remove the driver side shower duct (A) after loosening the screw.
- Install in the reverse order of removal.
