Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

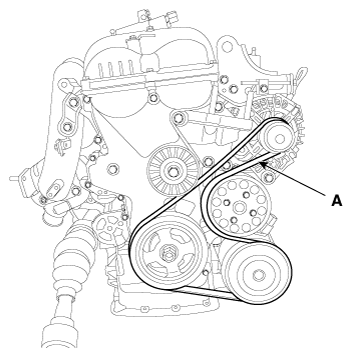

Install the drive belt (A).

Fig 1: Locating Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.

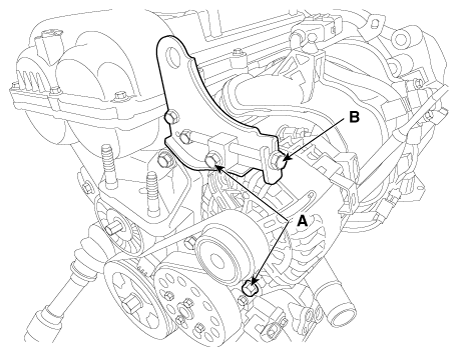

Adjust tension by tightening the alternator tension adjust bolt (B) and then install the mounting bolts (A).
Tightening Torque

12mm (0.47in) bolt:

19.6 - 26.5 Nm (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb-ft)

14mm (0.55in) bolt:

29.4 - 41.2 Nm (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb-ft)

Fig 2: Locating Drive Belt Tension & Adjusting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
