Repair Procedures: Installation

Install in the reverse order of removal.
NOTE: Perform the Clutch Touch Point Learning Procedure using the KDS/GDS after replacing TCM.

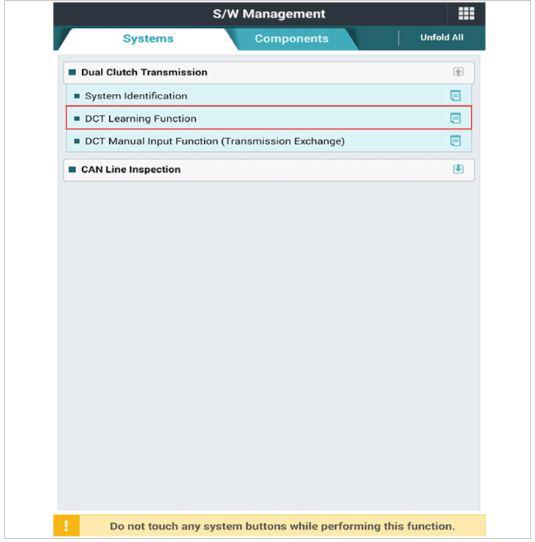

Fig 1: Scantool Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.
